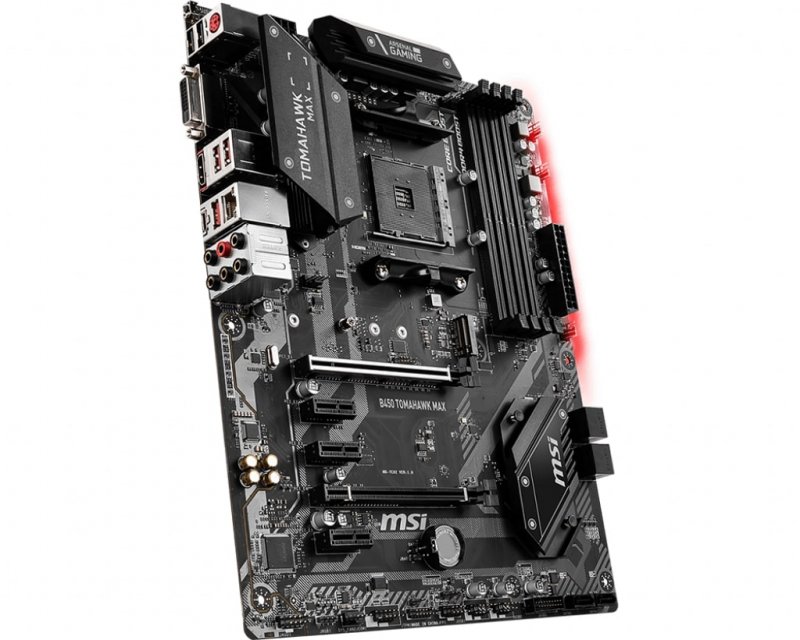

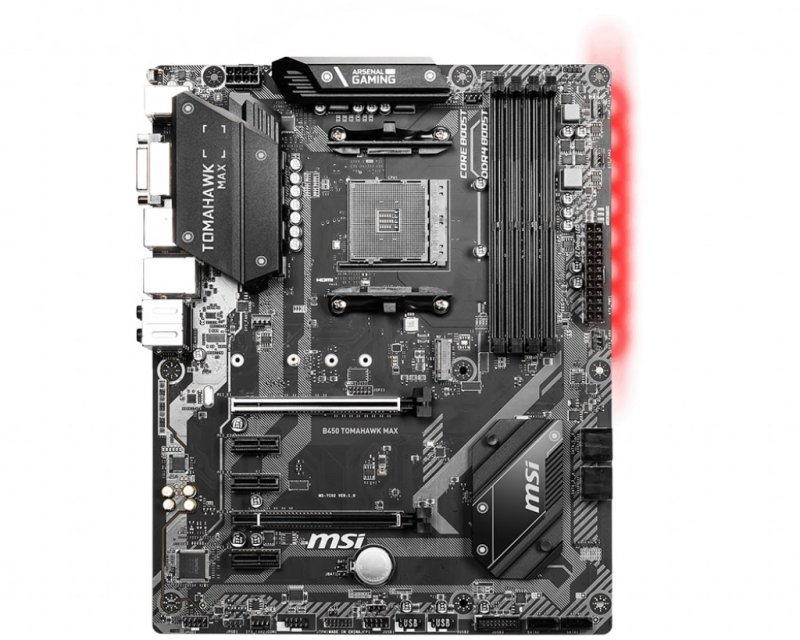

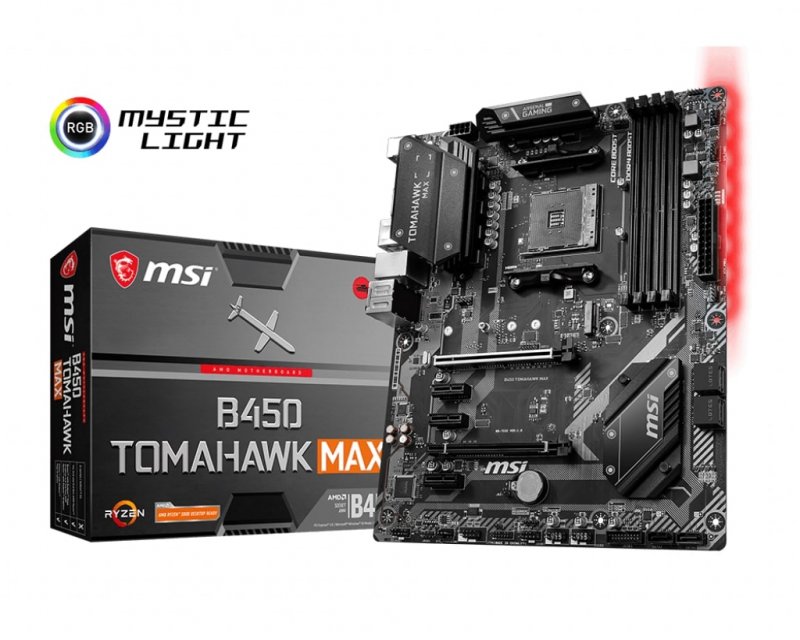

MSI B450 TOMAHAWK MAX

Popis produktu

Chipset: AMD® B450

Rozměrový formát: ATX Form Factor
Podpora pro procesory: Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Patice procesoru: AM4

Sloty na paměti: 4x DDR4, Dual channel, ECC UDIMM memory (non-ECC mode) + non-ECC UDIMM memory
Podpora pro paměti:

• AMD Ryzen Gen3 (R5/R7/R9) 1866/ 2133/ 2400/ 2667Mhz (by JEDEC), 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)
• AMD Other CPU 1866/ 2133/ 2400/ 2667Mhz (by JEDEC), 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

Max.velit operační paměti: 64 GB

Podpora více GPU

• 2-Way AMD® CrossFire™ Technology

Grafika (pouze pro CPU s integrovanou grafikou)
-1x DVI-D port, s rozlišením až 1920x1200 @60Hz
-1x HDMI™ 1.4 port, s rozlišením až 4096x2160@30Hz, 2560x1600@60Hz

Zvuková karta: Realtek® ALC892 Codec
Síťová karta: Realtek® 8111H Gigabit LAN controller

Rozšiřující sloty:
-1x PCIe 3.0 x16 slot (PCI_E1)

• 1st, 2nd and 3rd Gen AMD Ryzen™ processors support x16 speed
• Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors support x8 speed

-1x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
-3x PCIe 2.0 x1 slots
RAID řadič: RAID 0, RAID 1 a RAID 10

SATA: 6x SATA 6Gb/s ports
M.2: 1x M.2 slot (Key M)

Interní porty:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump-fan connector
• 4x 4-pin system fan connectors
• 1x TPM module connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Serial Port connector
• 1x Clear CMOS jumper
• 2x 5050 RGB LED strip 12V connectors

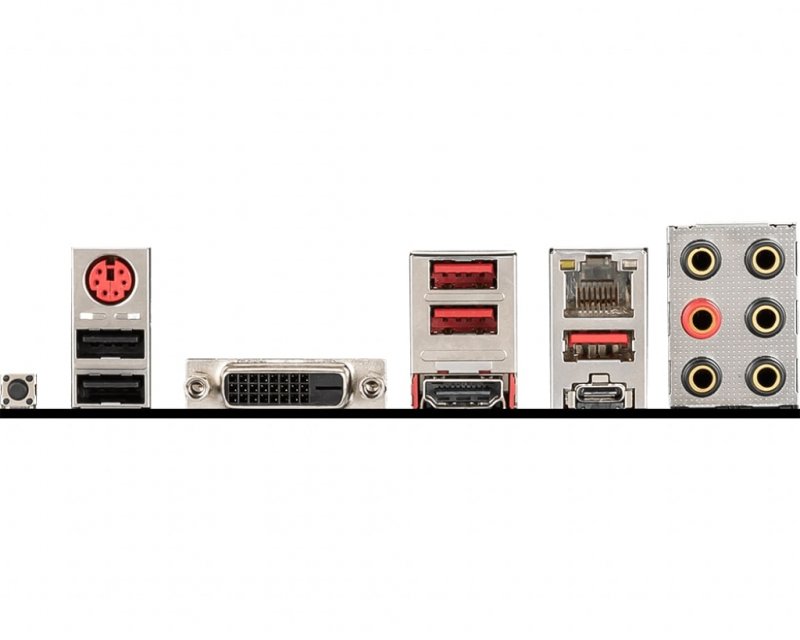

Externí porty:

• Flash BIOS Button
• 1x PS/2 Combo Port
• 2x USB 3.2 Gen1
• 1x LAN Port
• HD Audio Connectors
• 2x USB 2.0 Port
• 1x DVI-D Port
• 1x HDMI Port
• 1x USB 3.2 Gen2 Type A
• 1x USB 3.2 Gen2 Type C

Stránky výrobce: https://www.msi.com/Motherboard/B450-TOMAHAWK-MAX/Overview

Produkt MSI B450 TOMAHAWK MAX se nachází v kategorii AM4, výrobce MSI

Technické parametry
