Mikrotik R11e-5HnD miniPCI-e karta 802.11a/ n

Popis produktu

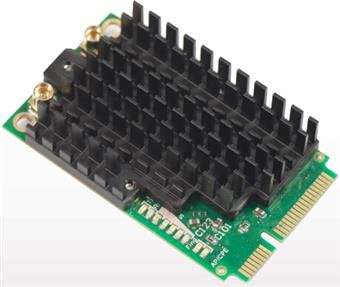

MikroTik R11e-5HnD

OVERVIEW
High power wireless cards in miniPCI-e format. Ideally suited for the new RB912 series, RB800 or our new miniPCIe adapter card - RB14e.

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

SPECIFICATIONS
Chipset
• AR9580

Frequency range
• 4920-5920MHz

Standards
• 802.11a/n

Max output power
• 1000mW

Format
• miniPCIe

Dimensions
• 51x30x13mm

Connectors
• 2x MMCX

Features
• 9 LED indicators, ESD protection

Temperature
• Starting -5C to +65C;
• Operating -30C to +65C

MAX power consumption
• 5W

TX/RX at MCS0
• 30dBm / -96dBm

TX/RX at MCS7
• 24dBm / -76dBm

TX/RX at 6Mbit
• 30dBm / -96dBm

TX/RX at 54Mbit
• 24dBm / -76dBm

Produkt Mikrotik R11e-5HnD miniPCI-e karta 802.11a/ n se nachází v kategorii WiFi, výrobce MIKROTIK

Odkazy

Datasheet:

https://katalog.atcomp.cz/katalog/51700…

Technické parametry
